We are Manufacturer, Supplier, Exporter of U-Shape Oriented Magnets, Alnico U-Shape Oriented Magnets and our set up is situated in Satara, Maharashtra, India.

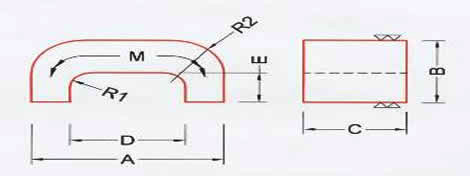

Fig:Alnico U-Shape Oriented Magnets.
Magnet Drg. No. |
Dimensions in mm |
Weight In Grams |
||||||
|---|---|---|---|---|---|---|---|---|
A |
B |
C |
D |
E |
R1 |
R2 |
||
6U304 |
22.0 |
7.5 |
8.0 |
10.0 |
2.0 |
1.5 |
9.0 |
7.0 |
6U301 |
22.0 |
7.5 |
10.0 |
10.0 |
2.0 |
1.5 |
9.0 |
9.2 |
6U302 |
22.0 |
7.5 |
12.0 |
10.0 |
2.0 |
1.5 |
9.0 |
10.6 |
6U305 |
22.0 |
7.5 |
15.0 |
10.0 |
2.0 |
1.5 |
9.0 |
13.8 |
